Deploy Drasi Faster with the Azure Developer CLI Extension

I have deployed Drasi enough times now to know exactly where the pain shows up: too much manual scaffolding, inconsistent post-provision steps, and "it worked in one environment but not the other" cluster setup drift.

So I built a custom Azure Developer CLI extension for AZD called azure.drasi to standardize that workflow end-to-end.

It gives you a clean, repeatable way to:

• Scaffold Drasi projects from templates
• Validate config before touching infrastructure
• Provision AKS + supporting Azure resources in one flow
• Deploy sources, queries, middleware, and reactions in dependency order
• Operate and troubleshoot Drasi workloads with native azd commands

Why I Built This

Drasi deployments are not just "deploy app and move on". You normally need to coordinate:

• Azure Kubernetes Service (AKS) configuration (including Workload Identity)
• Namespace/runtime setup
• Managed identity + Key Vault + diagnostics plumbing
• Correct deployment order for Drasi components

This is exactly the kind of process that becomes fragile if left to handwritten, ad hoc scripts per repo.

The extension wraps those moving parts into a consistent set of AZD commands, so your Drasi workloads feel like any other azd project lifecycle.

What the Extension Covers

The current azure.drasi extension supports:

• Project scaffolding templates:
  • blank
  • blank-terraform
  • event-hub-routing
  • postgresql-source

Supported Template Matrix

Template	Best for	Typical use case
blank	Starting from scratch	Build a custom Drasi topology with your own sources/queries/reactions
blank-terraform	Infra-first teams	Use Terraform-based provisioning workflows with Drasi project scaffolding
event-hub-routing	Streaming/event routing	Ingest from Event Hubs and route/filter events with Drasi queries
postgresql-source	Relational CDC demos/POCs	Capture PostgreSQL changes and validate end-to-end Drasi flow quickly

• These templates are starting points, not rigid blueprints. Before you run azd drasi provision, you can modify infrastructure settings (for example VM sizes/SKUs, PostgreSQL sizing, networking, and environment parameters) to fit your subscription limits, region availability, and production standards.

• Offline validation of Drasi config before deployment

• Infrastructure provisioning for AKS, Key Vault, UAMI, and Log Analytics

• Ordered Drasi component deployment with health checks

• Operations commands for status, logs, and diagnostics

• Safe teardown and runtime upgrade actions

Installation

Install the extension from my GitHub Releases registry:

azd extension source add -n drasi-lukemurray-azdext -t url -l "https://github.com/lukemurraynz/azd.extensions.drasi/releases/latest/download/registry.json"
azd extension install azure.drasi -s drasi-lukemurray-azdext

Verify:

azd drasi --help
azd drasi version

You can upgrade the extension with the latest upstream version from my repo using:

azd extension upgrade azure.drasi

Quick Start (First Run)

This is the fast path from an empty folder to deployed Drasi components:

mkdir my-drasi-app && cd my-drasi-app
azd init --minimal -force
azd drasi init --template postgresql-source
azd env new drasienv
azd drasi validate --strict
azd auth login
az login
azd drasi provision
azd drasi deploy
azd drasi status

Cost note: azd drasi provision can create billable resources (especially AKS and Log Analytics). Use a dedicated dev/test subscription or budget guardrails for experimentation. The following are example costs only to give a view of cost; Azure Developer CLI shines with the removal and redeployment of entire environments.

The postgresql-source template baseline (SKUs as defined in the Bicep: 2× Standard_D2s_v5 AKS nodes, Standard_B1ms PostgreSQL, Standard NAT Gateway + Public IP) — estimated USD, pay-as-you-go, 24 h/day:

newzealandnorth

Resource	SKU	1 day	7 days	30 days
AKS nodes ×2	Standard_D2s_v5	$6.05	$42.34	$181.44
PostgreSQL compute	Standard_B1ms (Burstable)	$0.66	$4.59	$19.66
NAT Gateway	Standard	$1.08	$7.56	$32.40
Public IP	Standard Static	$0.12	$0.84	$3.60
Total		$7.90	$55.32	$237.10

Key Vault (Standard) and Log Analytics are consumption-based: Key Vault is negligible for dev use; Log Analytics adds $3.51/GB (NZ North) above the 5 GB/day free allowance. VNet and managed identities are free.

Region note: If a SKU/offer is restricted in your default location, set a supported region before provisioning. For example:

azd env set AZURE_LOCATION australiaeast
azd drasi provision

This flow is intentionally opinionated: validate early, provision once, then deploy in a known order.

Common Scenarios

These are the scenarios I hit most often when building demos and internal proofs-of-concept.

1. Scaffold and Start with a Known Pattern

When you want to get moving quickly with a real source/reaction shape, start from a template:

azd drasi init --template event-hub-routing
azd drasi validate

This avoids copy/paste YAML drift and gives you a repeatable baseline across contributors.

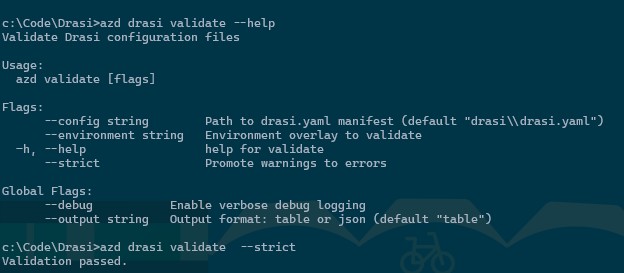

2. Validate in CI Before Provision/Deploy

If you want fast feedback on pull requests:

azd drasi validate --strict

Because validation runs offline, you can fail quickly without needing cluster access.

3. Dry-Run Before a Live Deploy

Useful when you want confidence in component changes:

azd drasi deploy --dry-run

Think of this as your safety rail before touching a shared environment.

4. Multi-Environment Deployments

Use overlays and environment targeting for dev/stage/prod separation:

azd drasi provision --environment dev
azd drasi deploy --environment dev

azd drasi provision --environment prod
azd drasi deploy --environment prod

This is where the extension helps prevent "prod got dev settings" moments.

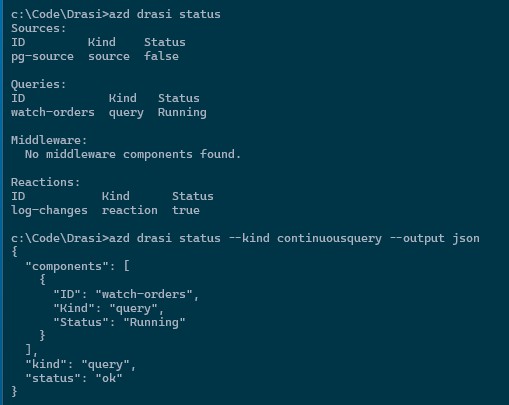

5. Operate and Troubleshoot a Running Deployment

azd drasi status
azd drasi status --kind continuousquery --output json
azd drasi logs --kind continuousquery --component order-changes
azd drasi diagnose

The diagnose command is especially useful when something is failing across auth, cluster connectivity, or runtime dependencies.

6. Teardown with Guardrails

# Components only
azd drasi teardown --force

# Components + infrastructure
azd drasi teardown --force --infrastructure

Cleanup note: If infrastructure remains provisioned, AKS and Log Analytics can continue incurring cost. Use azd drasi teardown --force --infrastructure (or azd down when applicable) to clean up fully.

This is force-gated by design so you are less likely to accidentally wipe an environment.

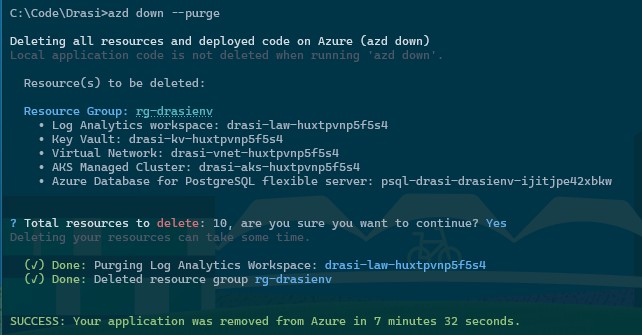

And a normal azd down works:

Day-2 Operations Notes

Some practical notes after using this in repeated demo cycles:

• Prefer --environment consistently, even in dev, so context switching is explicit.
• Use --output json in automation jobs where you need a machine-readable state.
• Keep secrets in Key Vault references and out of repo config.
• Use validate --strict as a pre-deploy gate in CI.

Gotchas I Found

Kube context confusion still happens. If your local context points at the wrong cluster, operations commands can surprise you. Prefer explicit environment targeting where possible.

Validation is not a replacement for live diagnostics. validate catches config-level issues early, but connectivity/auth/runtime checks still belong to diagnose on a live target.

Teardown is intentionally friction-filled. You must use --force, and that is a good thing.

Who This Is For

This extension is useful if you:

• Deploy Drasi repeatedly across multiple environments
• Want a reusable bootstrap path for sources/queries/reactions
• Need cleaner team handover (same commands, same flow)
• Prefer AZD-native workflows over custom one-off scripts

If you only run one tiny local experiment once, this may feel like overkill. For anything beyond that, consistency pays for itself quickly.

Wrapping Up

The main goal of azure.drasi is simple: remove the repetitive plumbing and make Drasi delivery predictable.

Instead of rebuilding the same script stack every time, you can use one AZD extension workflow to scaffold, validate, provision, deploy, operate, and clean up.

I will add more walkthrough GIFs and scenario demos over time, but the extension is already usable today for practical Drasi workflows.

Code: lukemurraynz/azd.extensions.drasi

If you try azure.drasi, I’d love your feedback:

• Issues: Report bugs or request features
