Native Service Bus Publishing from API Management

Recently Microsoft announced native Service Bus message publishing from Azure API Management, today we are going to take a look at this new feature and see how we can use it to publish messages AMQP (Advanced Message Queuing Protocol) to an Azure Service Bus queue or topic directly through an API Management endpoint, without needing middleware to do a transform for you - allowing external systems and mobile apps that lack native AMQP support can send messages to Service Bus by using standard HTTP/REST APIs via API Management.

info

A client sends a standard HTTP request to your API endpoint in API Management. The policy executes and sends the payload as a message to the Service Bus. Downstream consumers such as Logic Apps, Azure Functions, or microservices process those messages asynchronously.

All configurations happen in API Management - no code changes or new infrastructure are required.

The resources I am using for this test are as follows:

• API Management (Developer tier)
• Azure Service Bus Namespace with a Queue

These resources were created in the New Zealand North Azure region.

The API Management instance has System Managed identity enabled, and that identity has been granted the Azure Service Bus Data Sender role on the Service Bus namespace.

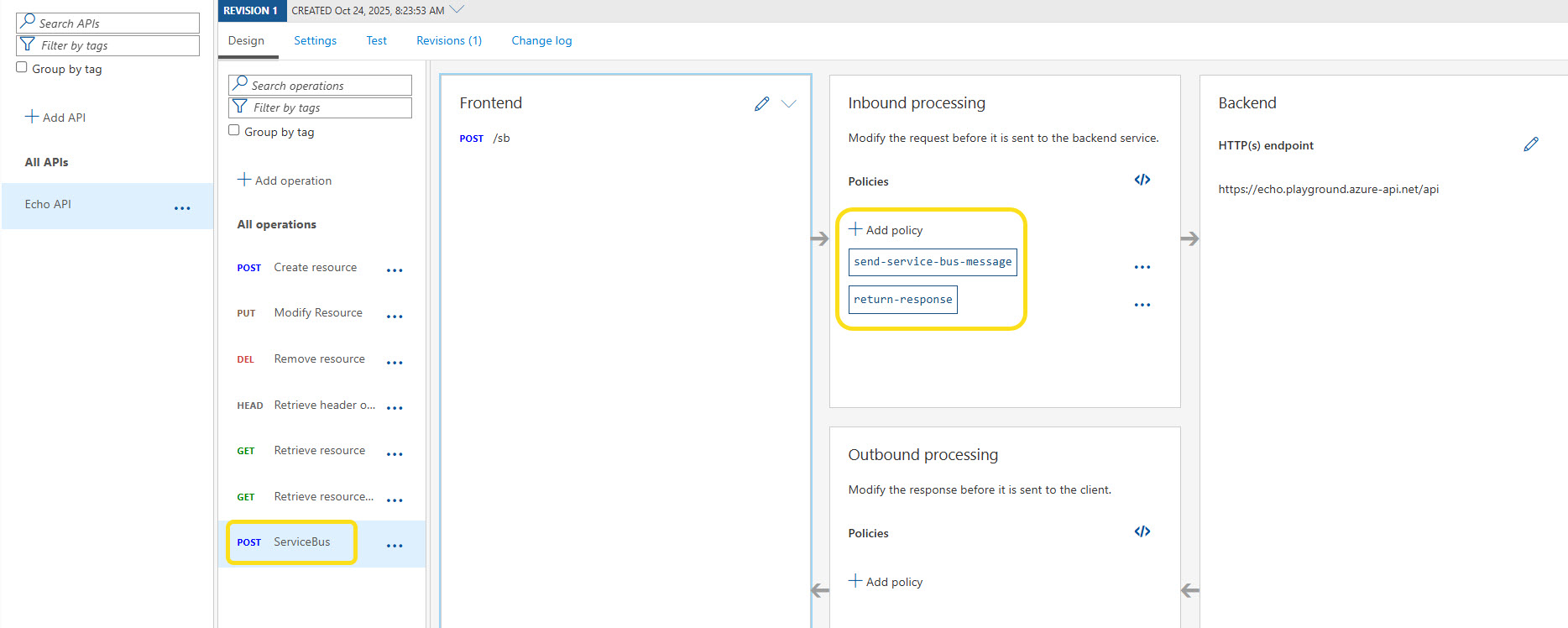

So let us test this out, in my test I have the default Echo API enabled in API Management, have created a new API operation called ServiceBus, this operation will accept a POST request with a JSON payload, and then publish that payload to the Service Bus queue (its worth noting there is no backend required for this endpoint as the policy does the heavy lifting here).

The policy I have applied to this operation is as follows:

<!--
    - Policies are applied in the order they appear.
    - Position <base/> inside a section to inherit policies from the outer scope.
    - Comments within policies are not preserved.
-->
<!-- Add policies as children to the <inbound>, <outbound>, <backend>, and <on-error> elements -->
<policies>
    <!-- Throttle, authorize, validate, cache, or transform the requests -->
    <inbound>
        <send-service-bus-message queue-name="your-queue" namespace="your-namespace.servicebus.windows.net">
            <message-properties>
                <message-property name="ApiName">@(context.Api?.Name)</message-property>
                <message-property name="Operation">@(context.Operation?.Name)</message-property>
                <message-property name="CallerIp">@(context.Request.IpAddress)</message-property>
                <message-property name="ContentType">@(context.Request.Headers.GetValueOrDefault("Content-Type","application/json"))</message-property>
                <message-property name="TimestampUtc">@(DateTime.UtcNow.ToString("o"))</message-property>
            </message-properties>
            <payload>@(context.Request.Body.As<string>(preserveContent: true))</payload>
        </send-service-bus-message>
        <return-response>
            <set-status code="201" reason="Message Created" />
        </return-response>
    </inbound>
    <!-- Control if and how the requests are forwarded to services  -->
    <backend />
    <!-- Customize the responses -->
    <outbound />
    <!-- Handle exceptions and customize error responses  -->
    <on-error>
        <base />
    </on-error>
</policies>

Note the queue-name and namespace attributes in the <send-service-bus-message> policy; these need to match your Service Bus queue name and namespace. You can also add a connection-string attribute if you want to use a specific connection string rather than the managed identity.

You can read more about it here: Send service bus message.

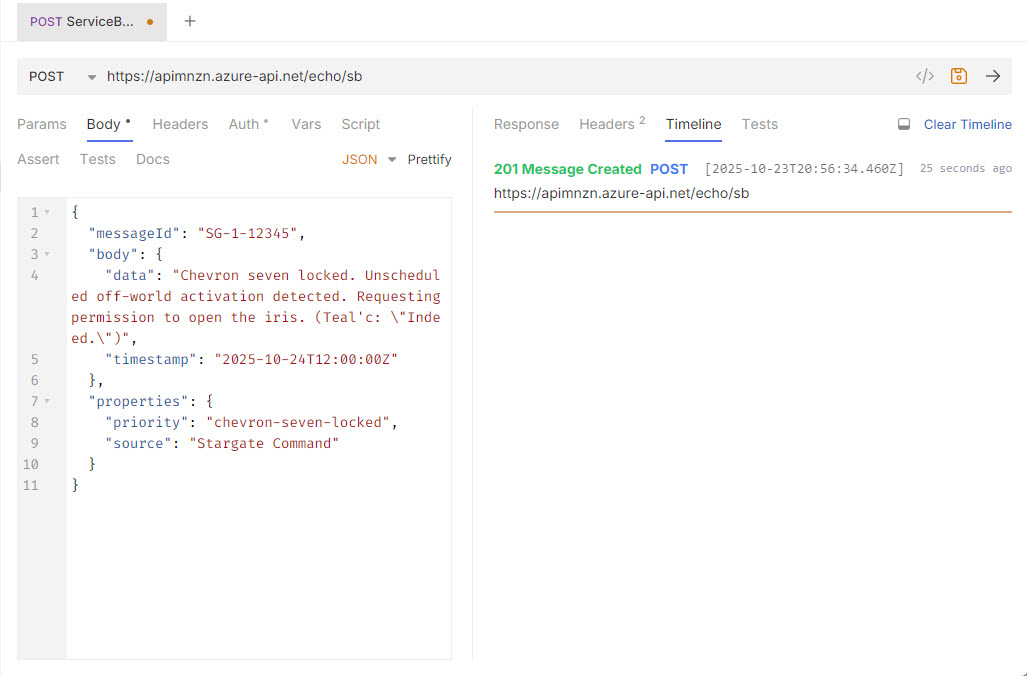

Now we can test this out. I am using Bruno to send a POST request to the API Management endpoint with a sample JSON payload:

{
  "messageId": "SG-1-12345",
  "body": {
    "data": "Chevron seven locked. Unscheduled off-world activation detected. Requesting permission to open the iris. (Teal'c: \"Indeed.\")",
    "timestamp": "2025-10-24T12:00:00Z"
  },
  "properties": {
    "priority": "chevron-seven-locked",
    "source": "Stargate Command"
  }
}

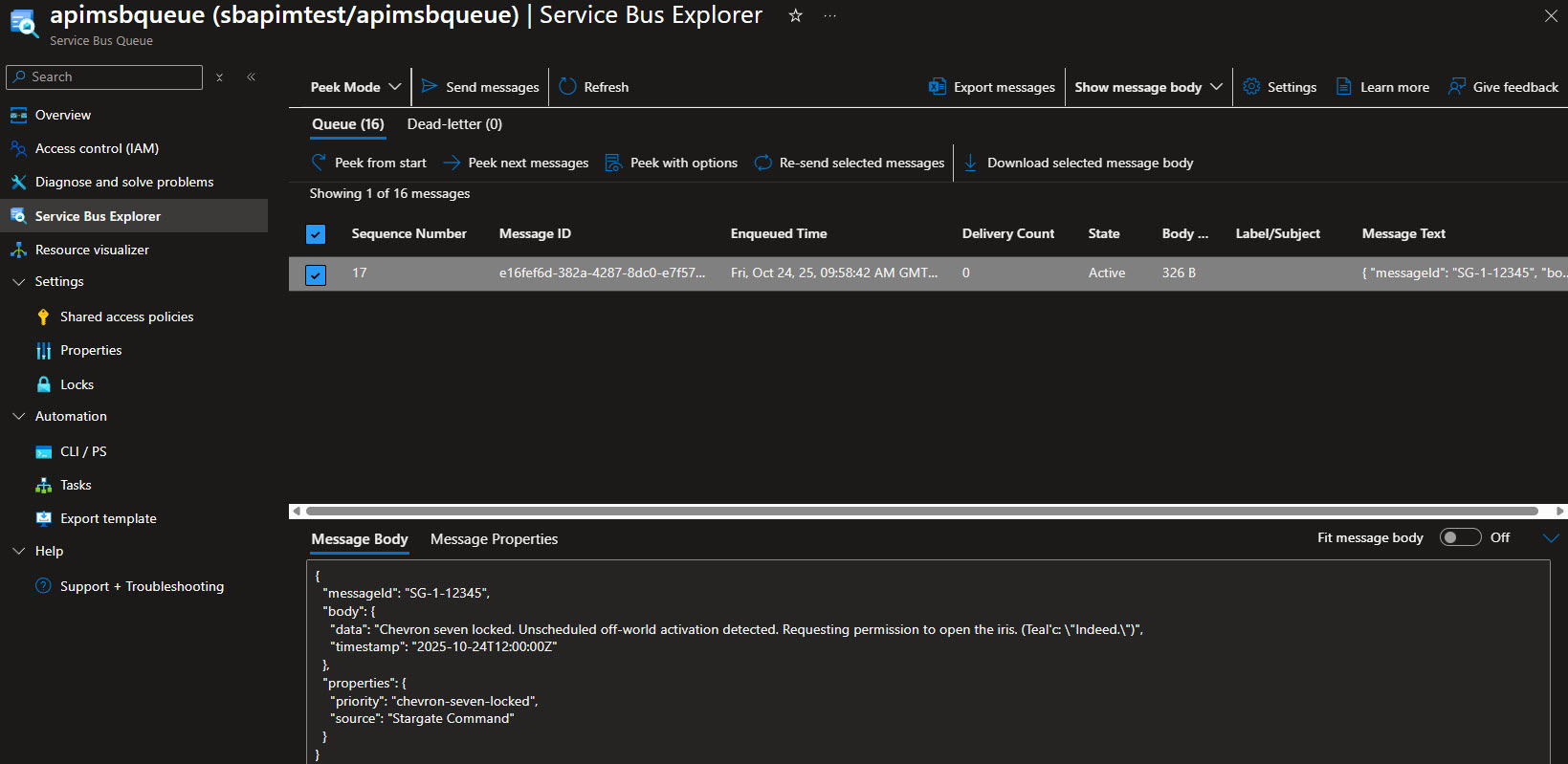

We can see the message was accepted with a 201 Message Created response, and if we check the Service Bus queue, we can see the message has arrived successfully:

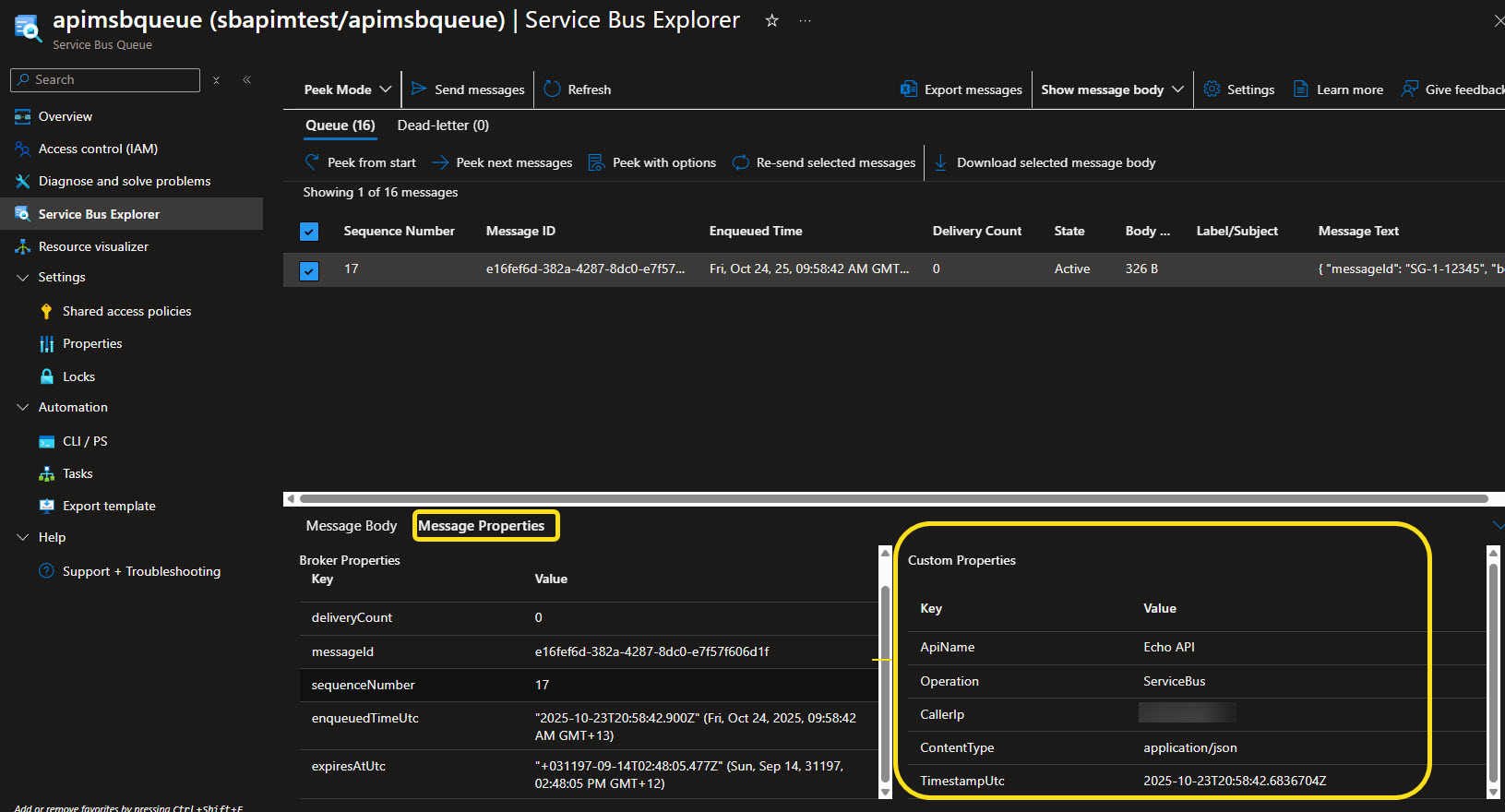

If we navigate to the Message Properties, we can see the custom properties we added in the policy have been applied to the message:

From there, you can easily have downstream consumers such as Logic Apps, Azure Functions, or microservices process those messages.
